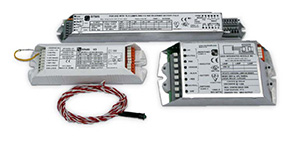

Emergency Conversion Equipment
Module and Battery BLF
Please note: The appropriate module and battery pack should be ordered separately.
Lamp Type |
3 Cell Battery Order Codes |
4 Cell Battery Order Codes |
5 Cell Battery Order Codes |
6 Cell Battery Order Codes |
|
|---|---|---|---|---|---|
T5 Flourescent | |||||
 |
14 watt |
S4CHE (BLF - 21%) |
S5CHE (BLF - 26%) |
EZMB505 (BLF - 16%) |
|
21 watt |
S4CHE (BLF - 14%) |
S5CHE (BLF - 21%) |
EZMB505 (BLF - 15%) |
||
28 watt |
S5CHE (BLF - 12%) |
EZMB505 (BLF - 12%) |
|||
35 watt |
EZMB505 (BLF - 10%) |
||||
24 watt |
EZMB506 (BLF - 10%) |
||||
39 watt |
EZMB506 (BLF - 8%) |
||||
49 watt |
EZMB506 (BLF - 7%) |
||||
54 watt |
EZMB506 (BLF - 5%) |
||||
80 watt |
EZMB680 (BLF - 5%) |
||||
T5 Circular | |||||
 |
22 watt |
EZMB4CHE* (BLF-14%) |
|||
40 watt |
EZMB654* (BLF - 10%) |
||||
55/60 watt |
EZMB654* (BLF - 7%) |
||||
T8 Fluorescent | |||||
 |
18 watt |
EZMB664 (BLF - 13%) |
EZMB665 (BLF - 11%) |
EZMB506 (BLF - 12%) |
|
36 watt |
EZMB664 (BLF - 8%) |
EZMB665 (BLF - 9%) |
EZMB506 (BLF - 10%) |
||
58 watt |
EZMB665 (BLF - 6%) |
EZMB506 (BLF - 5%) |
|||
70 watt |
EZMB666 (BLF - 9%) |
||||
TC-D Compact Fluorescent | |||||
 |
10 watt |
EZMB4CHE* (BLF - 21%) |
|||
13 watt |
EZMB4CHE* (BLF - 32%) |
||||
18 watt |
EZMB4CHE* (BLF - 23%) |
||||
26 watt |
EZMB4CHE* (BLF - 18%) |
||||
TC-F Compact Fluorescent | |||||
 |
18 watt |
EZMB4CHE* (BLF - 12%) |
|||
24 watt |
EZMB4CHE* (BLF - 15%) |
||||
36 watt |
EZMB4CHE* (BLF - 11%) |
||||
TC-T Compact Fluorescent | |||||
 |
13 watt |
EZMB4CHE* (BLF - 30%) |
EZMB642* (BLF - 24%) |
||
18 watt |
EZMB4CHE* (BLF - 23%) |
EZMB642* (BLF - 25%) |
|||
26 watt |
EZMB4CHE* (BLF - 19%) |
EZMB642* (BLF - 16%) |
|||
32 watt |
EZMB642* (BLF - 17%) |
||||
42 watt |
EZMB642* (BLF - 12%) |
||||
57 watt |
EZMB642* (BLF - 24%) |
||||
TC-L Linear Compact Fluorescent | |||||
 |
18 watt |
EZMB4CHE* (BLF - 18%) |
EZMB540* (BLF - 17%) |
||
24 watt |
EZMB4CHE* (BLF - 17%) |
EZMB540* (BLF - 15%) |
|||
36 watt |
EZMB4CHE* (BLF - 11%) |
EZMB540* (BLF - 12%) |
|||
40 watt |
EZMB640* (BLF - 11%) |
||||
55 watt |
EZMB666* (BLF -7%) |
EZMB655* (BLF - 16%) |
|||
80 watt |
EZMB680* (BLF - 6%) |
||||
2D | |||||
 |
10 watt |
||||
16 watt |
EZMB4CHE (BLF - 30%) |
||||
21 watt |
EZMB4CHE (BLF - 27%) |
||||
28 watt |
EZMB4CHE (BLF - 24%) |
||||
38 watt |
EZMB4CHE (BLF - 16%) |
||||
55 watt |
EZMB642 (BLF - 5%) |
||||
2D Integrated Ballast & Module | |||||
16 watt |
EZMB222 (BLF - 15%) |
||||
21 watt |
EZMB222 (BLF - 15%) |
||||
28 watt |
EZMB223 (BLF - 15%) |
||||
38 watt |
EZMB227 (BLF - 10%) |
||||
* Modules are for non amalgam lamps, for other types please enquire.
* Add su x for battery required.
Eg: EZMB665 58 watt emergency pack suitable for both switch start and high frequency control gear with a 6% BLF.
Emergency Module Dimensions
Order Code |
Width |
Height |
Length |
Fixing Centres |
 |
|---|---|---|---|---|---|
EZM4CHE |
44mm |
35mm |
150mm |
140mm |
|
EZM5CHE |
44mm |
35mm |
150mm |
140mm |
|
EZM505 |
28mm |
28mm |
250mm |
245mm |
|
EZM506 |
28mm |
28mm |
250mm |
245mm |
|
EZM540 |
42mm |
35mm |
150mm |
140mm |
|
EZM666 |
44mm |
35mm |
150mm |
140mm |
|
EZM642 |
42mm |
35mm |
210mm |
200mm |
|
EZM654 |
42mm |
35mm |
210mm |
200mm |
|
EZM655 |
42mm |
35mm |
210mm |
200mm |
|
EZM664 |
44mm |
35mm |
150mm |
140mm |
|
EZM665 |
44mm |
35mm |
150mm |
140mm |
|
EZM680 |
28mm |
28mm |
250mm |
245mm |
|
EZIB222 |
73mm |
33mm |
150mm |
140mm |
|
EZIB223 |
73mm |
33mm |
150mm |
140mm |
|
EZIB227 |
73mm |
33mm |
150mm |
140mm |
